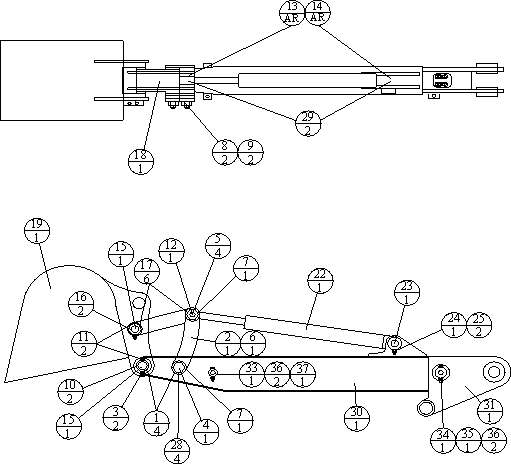

ES1000 Extendable Paw
| ITEM | PART NUMBER | QTY | DESCRIPTION |
| 1 | DP-0042 | 4 | Dust Seal |
| 2 | DP-0115 | 1 | Plate (Link) |
| 4 | DP-0045 | 1 | Pin |
| 5 | DP-0046 | 4 | Zerk |
| 6 | DP-0116 | 1 | Plate (Link) |
| 7 | DP-0048 | 2 | Washer |
| 8 | DP-0049 | 2 | Nut |
| 9 | DP-0050 | 2 | Split Pin |
| 10 | DP-0051 | 2 | O-Ring |
| 11 | DP-0052 | 2 | Bolt |
| 12 | DP-0053 | 1 | Pin |
| 13 | DP-0054 | AR | Shim |
| 14 | DP-0055 | AR | Shim |
| 15 | DP-0056 | 2 | Pin |
| 16 | DP-0057 | 2 | O-Ring |
| 17 | DP-0058 | 6 | Dust Seal |
| 18 | DP-0117 | 1 | Arm Assembly (Link) |
| 19 | DP-0100 | 1 | Bucket Assembly |
| 22 | DP-0063 | 1 | Bucket Cylinder |
| 23 | DP-0064 | 1 | Pin |
| 24 | DP-0052 | 1 | Bolt |
| 25 | DP-0044 | 2 | Nut |
| 26 | DP-0054 | AR | Shim |
| 27 | DP-0055 | AR | Shim |
| 28 | DP-0041 | 4 | Bushing |
| 29 | DP-0294 | 2 | Bushing |
| 30 | DP-0002A | 1 | Outer Dipper |
| 31 | DP-0003A | 1 | Inner Dipper |
| 32 | DP-0004 | 1 | Telescoping Cylinder |
| 33 | DP-0005 | 1 | Pin |
| 34 | DP-0006 | 1 | Pin |
| 35 | DP-0007 | 1 | Bolt |
| 36 | DP-0008 | 2 | Nut |
| 37 | DP-0009 | 1 | Bolt |
| 38 | RC-0137 | 2 | Adapter |
| 39 | RC-0141 | 2 | Elbow |
| 40 | DP-0065 | 4 | Wear Pads |
| 41 | DP-0029 | 20 | Screws - Wear Pads |
