EXTENDABLE PAW

Includes:
*Cylinder
*Bushings


Fits:

Full-size and Mini-Excavators



Features:

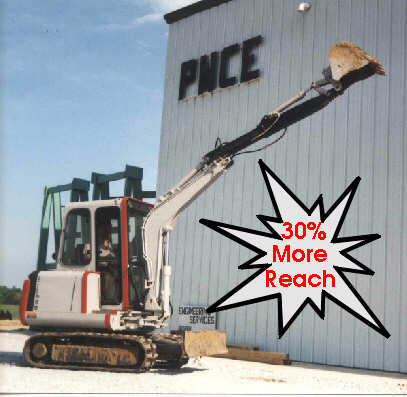

  • 30% more reach to your machine.
  • Has replaceable wear plates.
  • Installs in less than 5 hours.
  • Fits several makes and models of mini- & full-size excavators.
  • No extra counterweights needed in most cases.
  • Guaranteed
  • Local parts availability.

Affordable

Designed with the
same high standards as the
Extendavator
800-990-PWCE

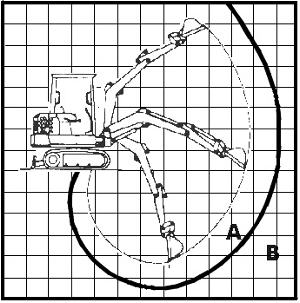

Line A is the
reach of an
mini-excavator
without the
Extendable Paw.


Line B shows
the additional
30% of
reach gained
with the
Extendable Paw.

The Extendable Paw is a cost effective way to add extra reach and digging depth to your excavator. Compare the cost difference between the Extendable Paw and buying a larger machine to get that extra reach. Additional setup costs are eliminated because the Extendable Paw does not require any additional counterweights. Minimal installation downtime is an added feature. Here at Paul Wever Construction Equipment, we set high standards for the products we make.

Part # Weight Class Stick Length Extra Reach
 ES250

3.5K - 5.0K lb.

3' - 5'

2FT.

ES500 5.1K - 7.5K lb. 4' - 6' 2FT.
ES1000 7.6K - 11K lb. 5.3' - 7.3' 2FT.
ES1200

10K - 15K lb.

6' - 8'

2FT.

ES1500 12K - 15.4K lb. 6' - 9' 3FT.
ES2250

 15.5K - 18K lb.

 6' - 9'

 3FT.

ES2500 17K - 24K lb. 7' - 11' 4FT.
ES3400 24.1K - 30K lb. 8'3" - 12'3" 4FT.
ES3800

 30.1K - 35.6K lb.

 9' - 13'

4FT.

ES4000 35.7K - 41.8K lb. 9' - 14' 5FT.
ES4500

 41.9K - 46.1K lb.

10' - 15'

5FT.

ES5000

46.2K - 51.4K lb.

 10' - 15'

 5FT.

ES5500 51.5K - 55K lb. 11' - 16' 5FT.
ES6000

55.1K - 61K lb.

11' - 16'

5FT.

ES7000 61.1K - 65.7K lb. 11' - 16' 5FT.
ES8000

65.8K - 76.4K lb.

12' - 17'

5FT.

ES8500 76.5K - 85K lb. 12' - 17' 5FT.
ES10000 86K - 105K lb. 13' - 18' 5FT.

Paul Wever Construction Equipment is dedicated to product support for the construction equipment industry. We provide owners, operators, and dealers with solutions to their problems. If you have a need for engineering services, new product development, or current product support, please call us.

If you have any questions, please contact us.



Paul Wever Construction Equipment Co., Inc.
401 Martin Dr. -- P.O. Box 85
Goodfield, IL 61742
1-800-990-7923
