EXTENDAVATOR
The Affordable Long-Reach StickRequiring NO Added Counterweight
John Deere D890A

John Deere D890A Extended Boom
Excavator with a 16' Extendavator
and 1.06 cubic yard bucket.
Cat 225 Excavator

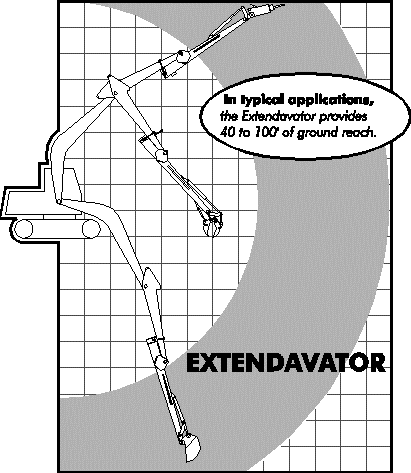

The Extendavator provides a reach of
55' and has optional hammer attachment.


Cat 225 Excavator with the optional
Spread Track Feature.
This Extendavator provides 55' of
dig depth along with the machines
ability to spread the track to 25'.
Case 9030 Excavator with
8' Extendavator using OEM
bucket and hydraulics.
No added counterweight.
..........................................................



Here are just a few of the reasons to purchase an Extendavator.

  • No additional counterweights
  • Installs in two hours or less
  • No additional valves
  • Economical
  • Guaranteed
  • Fits multiple machines*
  • Transports with the machine*
  • No operator retraining
  • Local parts availability
  • Used on 25,000 to 500,000 pound machines
  • Available in many sizes and lengths


* Except 4 to 8 feet


Extendavator Series No. Machine Weight Class Recommended Lengths of Extendavator
EX40 20,000 to 40,000 4 to12'
EX70 40,000 to 70,000 4 to 20'
EX110 70,000 to 110,000 4 to 24'
EX180 110,000 to 180,000 4 to 32'
EX500 180,000 to 500,000 4 to 36'

Lighter and heavier models available upon request.

Sample quote for a
Caterpillar 330 with
Extendavator
ready-to-go.

20' Extendavator.........$18,400
1.0 Yard 60" bucket....$3,000
60' of total reach..........$21,400

Extendavator Warranty is 6 months on non-wear parts.

Paul Wever Construction Equipment is dedicated to product support for the construction equipment industry. We provide owners, operators, and dealers with solutions to their problems. If you have a need for engineering services, new product development, or current product support, please call us.


If you have any questions, please contact us.
