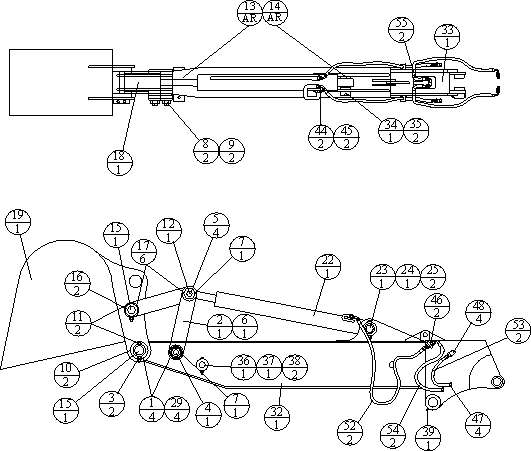

ES1000 Extendable Paw
| ITEM | PART NUMBER | QTY | DESCRIPTION |
| 1 | DP-0173 | 4 | Dust Seal |
| 2 | DP-0174 | 1 | Modified Plate (Link L.H.) |
| 3 | DP-0044 | 4 | Nut |
| 4 | DP-0175 | 1 | Pin |
| 5 | DP-0046 | 4 | Zerk |
| 6 | DP-0176 | 1 | Plate (Link R.H.) |
| 7 | DP-0177 | 2 | Washer |
| 8 | DP-0178 | 2 | Nut |
| 9 | DP-0179 | 2 | Cotter Pin |
| 10 | DP-0180 | 2 | O-Ring |
| 11 | DP-0181 | 2 | Bolt |
| 12 | DP-0182 | 1 | Pin |
| 13 | DP-0183 | AR | Shim |
| 14 | DP-0184 | AR | Shim |
| 15 | DP-0185 | 1 | Pin |
| 16 | DP-0186 | 2 | O-Ring |
| 17 | DP-0187 | 6 | Dust Seal |
| 18 | DP-0188 | 1 | Arm Assembly (Link) |
| 19 | DP-0189 | 1 | Bucket Assembly |
| 20 | DP-0191 | AR | Shim |
| 22 | DP-0192 | 1 | Bucket Cylinder |
| 23 | DP-0193 | 1 | Pin |
| 24 | DP-0181 | 1 | Bolt |
| 25 | DP-0044 | 2 | Nut |
| 26 | DP-0183 | AR | Shim |
| 27 | DP-0184 | AR | Shim |
| 28 | DP-0191 | AR | Shim |
| 29 | DP-0226 | 4 | Bushing |
| 30 | DP-0292 | 2 | Bushing (Bucket Cylinder) |
| 31 | DP-0293 | 4 | Dust Seal (Bucket Cylinder) |
| 32 | DP-0201 | 1 | Outer Dipper |
| 33 | DP-0202 | 1 | Inner Dipper |
| 34 | DP-0204 | 1 | Pin |
| 35 | DP-0205 | 2 | Retainer |
| 36 | DP-0206 | 1 | Pin |
| 37 | DP-0207 | 1 | Bolt |
| 38 | DP-0208 | 2 | Nut |
| 39 | DP-0209 | 1 | Zerk |
| 40 | DP-0283 | 1 | Bushing |
| 41 | DP-0277 | 2 | Top & Bottom Wear Pads |
| 42 | DP-0281 | 40 | Screws - Wear Pads |
| 43 | DP-0304 | 2 | Side Wear Pads |
| 44 | DP-0263 | 2 | Adapter |
| 45 | DP-0326 | 2 | 90 deg. Elbow |
| 46 | DP-0320 | 2 | Bulkhead Fitting |
| 47 | DP-0268 | 4 | Adapter |
| 48 | DP-0321 | 4 | 90 deg. Elbow |
| 49 | WC-0074 | 2 | Hose Assembly Bracket |
| 50 | WC-0073 | 2 | Top Bracket |
| 51 | WC-0012 | 2 | Bolt (1/2"-13 x 1") |
| 52 | DP-0319 | 2 | 62" Hose Assembly |
| 53 | DP-0266 | 2 | 24" Hose Assembly |
| 54 | DP-0322 | 2 | 24" Hose Assembly |
| 55 | DP-0323 | 2 | Coupling |
| 56 | DP-0326 | 2 | Elbow (Telescoping Cylinder) |
| 57 | DP-0211 | 1 | 60" Hose Assembly (Telescoping Cylinder) |
| 58 | DP-0212 | 1 | 21" Hose Assembly (Telescoping Cylinder) |
| 59 | RC-0495 | 2 | Wire Ties |
| 60 | DP-0203 | 1 | Telescoping Hydraulic Cylinder |
