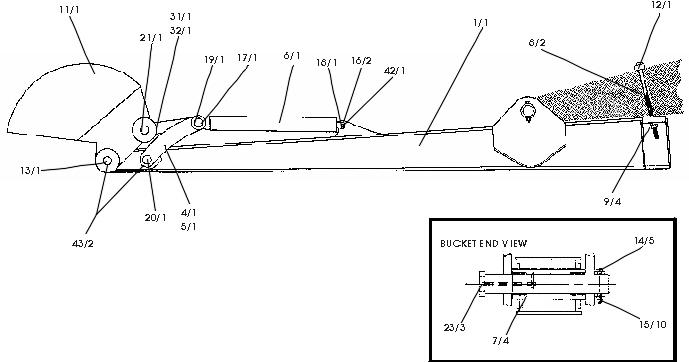

EX70 EXTENDAVATOR BREAKDOWN
40,000 lbs. to 70,000 lbs.
ITEM QTY PART NUMBER NAME DESCRIPTION
1 1 WC-0020 Boom Assembly
2 1 WC-0003 Hose Assembly 3/4" I.D. x 75" Long
3 1 WC-0007 Hose Assembly 3/4" I.D. x 31" Long
4 1 WC-0031 Link Assembly Idler Link R.H.
5 1 WC-0050 Link Assembly w Lock Idler Link L.H.
6 1 WC-0023 Cylinder 4" Bore
7 4 WC-0058 Bushing 65mm I.D. 80mm O.D.
8 2 WC-0067 Rod Assembly 1 1/4" Threaded Rod
9 4 WC-0016 Nut 1 1/4" Nut
10 2 WC-0002 Hose Assembly 3/4" I.D. x 48" Long
11 1 WC-0022 C.F. Bucket

PWCE Bucket

60" Dredge Bucket
12 1 WC-0052 Plate-tie

Saddle

16.5" Center
13 1 WC-0049 Pin Dipper to Bucket
14 5 WC-0011 Bolt ½" x 4 ½" Long
15 10 WC-0013 Nut ½" Nut
16 2 WC-0008 Zerk Drive Zerk
17 1 WC-0017 Bushing Rod End Turn out 60 thousandths
18 1 WC-0018 Bushing Head End
19 1 WC-0048 Pin Rod End to Idler
20 1 WC-0081 Pin Idler to Dipper
21 1 WC-0091 Pin Power Link to Bucket
22 2 WC-0001 Tube Assembly 3/4" x 96" 20 ft. Boom
23 3 WC-0009 Zerk Metric Zerk
24 1 WC-0069 Tube Assembly 3/4" x 96" Dipper R.H.
25 1 WC-0070 Tube Assembly 3/4" x 96" Dipper L.H.
26 4 WC-0012 Bolt ½" x 1" Long
27 4 WC-0072 Clamp Top Hydraulic Tube Holder
28 4 WC-0074 Clamp Assembly Hydraulic Tube Holder Bottom
29 2 WC-0014 Elbow Hydraulic Cylinder
30 2 WC-0015 Elbow Tube Assembly
31 1 WC-0173 Power Link Power Link R.H.
32 1 WC-0174 Power Link Power Link L.H.
33 2 WC-0010 Bushing Komatsu PC220
34 2 WC-0004 Bushing Komatsu PC300
35 2 WC-0047 Bushing John Deere 790D
36 2 WC-0136 Bushing John Deere 690C
37 1 WC-0137 Pin John Deere 690C
38 2 WC-0139 Bushing John Deere 690D
39 2 WC-0240 Bushing CAT 229
40 1 WC-0095 Plate-Tie

Saddle

15.5" Center
41 1 WC-0057 Bushing Dog Bone
42 8 Head Bolts Cylinder
43 1 WC-0487 Cartridge Adjustable Cartridge
44 1 WC-0488 Valve Valve
45 1 WC-0506 Pin Cylinder Bottom
46 2 WC-0059 Bushing Boom End
